Overview

AirMDR integrates with Amazon Web Services (AWS) to investigate security findings, query logs and metrics, retrieve cloud resource context, and automate response actions. The permissions required depend on the skills and workflows your organization uses.
  • Investigation access: Read security findings, audit events, logs, metrics, and resource information to investigate threats and enrich alerts.
  • Query access: Execute Athena queries for historical analysis. This requires access to source data, catalog metadata, and an S3 location where query results are written.
  • Write access: Perform response actions, such as archiving GuardDuty findings, updating Security Hub finding status, and uploading or deleting S3 objects.
  • Permissions-management access: Revoke IAM role sessions by attaching or updating an inline policy on the specified target role.
To support these capabilities, AirMDR requires specific AWS services, which can be granted by following these steps:
  1. Enable AWS GuardDuty
  2. Create IAM policy
  3. Choose one of the three integration methods based on your organization’s requirements:
  4. Configure AWS in the AirMDR Integrations Dashboard
    After completing the above steps, click here to view or access all the generated AWS authentication parameters in the AWS UI Console.

​
AirMDR – AWS Integration Guide

​
Enable AWS GuardDuty

AWS GuardDuty is mandatory for integration with AirMDR because it serves as the primary threat detection engine in your AWS environment and AirMDR relies on GuardDuty findings to perform its core security use cases.
To Enable AWS GuardDuty, refer to Getting started with GuardDuty.

​
Create IAM policy

To allow AirMDR to fetch telemetry data and perform read-only queries on your AWS environment, create a custom IAM policy with the following managed policies:
Creating a custom IAM policy in AWS is important when integrating with platforms like AirMDR because it allows you to define precise, least-privilege access
Expand this sections to explore the complete set of AWS IAM permissions used by AirMDR, along with how they are applied across skills, actions, and playbooks. This information is intended for reference purposes, and helpful when reviewing access scope, customizing IAM policies, or conducting security reviews.
🔹 Description:
Provides read-only access to EC2 and container metadata, enabling AirMDR to enrich alerts, assess security configurations, classify workloads by risk, and validate container deployment standards.🔸 Input Params Used:
service_name: ec2, method_name: describe_instances🔸 AWS Actions:
ec2:DescribeInstances🔸 Skills Used:
general_aws_query📎 Findings:image.pngAWS45 PnAWS46 PnAWS47 Pn
🔹 Description:
Enables AirMDR to retrieve and analyze GuardDuty findings for suspicious activity related to S3 buckets and remote IPs, supporting threat pattern detection, anomaly analysis, and automated case enrichment.🔸 AWS Actions:
guardduty:ListFindings, guardduty:ListDetectors, guardduty:GetFindings🔸 Skills Used:
Get AWS Guardduty Findings
🔹 Description:
Provides read-only access to evaluate S3 bucket security by checking configurations, classifying data sensitivity, and validating real-world exposure risks.🔸 Input Params Used:
service_name: s3, method_name: [get_bucket_acl, get_public_access_block, get_bucket_policy, get_bucket_tagging, list_objects_v2]🔸 AWS Actions:
s3:GetBucketAcl, s3:GetBucketPublicAccessBlock, s3:GetBucketPolicy, s3:GetBucketTagging, s3:ListBucket🔸 Skills Used:
general_aws_query📎 Findings:AWS48 Pn
🔹 Description:
Grants read-only access to CloudTrail logs for reconstructing activity timelines, detecting suspicious patterns, and enriching alerts with user and process-level context.🔸 Input Params Used:
Attribute Key: ResourceName, Attribute Value: ec2 instance id, filter_key: sourceIPAddress🔸 AWS Actions:
cloudtrail:DescribeTrails, cloudtrail:GetTrailStatus, cloudtrail:LookupEvents🔸 Skills Used:
Lookup AWS Cloudtrail Events📎 Findings:AWS49 PnAWS50 PnAWS51 PnAWS52 Pn
🔹 Description:
Allows read-only access to CloudWatch logs for analyzing VPC activity, extracting alert context, and enriching investigations with time-bound log insights.🔸 Input Params Used:
Log Group Name, Log Stream Name Prefix🔸 AWS Actions:
logs:DescribeLogGroups, logs:DescribeLogStreams, logs:GetLogEvents, logs:FilterLogEvents🔸 Skills Used:
Filter AWS CloudWatch Log Events📎 Findings:AWS53 Pn
🔹 Description:
Enables validation of IAM permissions and detection of unusual user behavior, such as bulk S3 modifications, to support access risk analysis.🔸 Input Params Used:
service_name: iam, method_name: [get_user, list_attached_user_policies, simulate_principal_policy]🔸 AWS Actions:
iam:GetUser, iam:ListAttachedUserPolicies, iam:SimulatePrincipalPolicy, cloudtrail:LookupEvents🔸 Skills Used:
Lookup AWS Cloudtrail Events, general_aws_query📎 Findings:AWS54 Pn
  1. Sign in to the same AWS IAM Console created for AWS GuardDuty.
  2. Search for IAM in the top menu bar.
  3. In the IAM dashboard, click on IAM resources → Policies. AWS12 Pn
  4. Click Create policy in the top right corner. AWS13 Pn
  5. Select JSON tab in the toggle tabs and paste the following: AWS14 Pn
    User can update the Policy Permissions mentioned in the JSON as per requirement.
  6. Click Next.
  7. In the Review and create section, provide the required information for the Policy details.
    • Policy name – Provide a meaningful name like AirMDR-ReadOnlyPolicy.
    • Description (Optional) – Add a short description for this policy.
    AWS16 Pn
  8. Review your selections (Permissions defined in this policy), and if everything is correct.
    • Review Permissions – Ensure the attached policies meet your security needs.
    • Review Trust Policy – Verify the trust policy when you use cross-account access or service.
    AWS17 Pn
  9. Click Create policy.

​
Option 1: IAM User (Access Key Method)

  • Navigate to IAM → IAM Dashboard.
  • Click on IAM resources → User.
  • Click Create user in the top right corner. AWS18 Pn
  • Enter a User name (e.g., airmdr-integrator).
  • Click Next. AWS19 Pn
  • In the Set permissions section, select Attach policies directly.
  • Search and select AirMDR-ReadOnlyPolicy .
    Click here for detailed steps to define the AirMDR-ReadOnlyPolicy in IAM.
  • Click Next. AWS20 Pn
  • In the Review and create section, click Create user. AWS21 Pn
  • Search and select the User name (e.g., airmdr-integrator) created earlier.
  • Click on Create access key.
  • Select the Command Line Interface (CLI) Use case, and the confirmation checkbox.
  • Click Next. AWS25 Pn
  • In the set description tag - optional section, provide the required information for the Description tag value.
    • Description tag value (Optional) – Access key for AirMDR’s Use case.
  • Click Create access key. AWS27 Pn
  • On the Retrieve access keys screen, copy the:
    • ✅ Access Key ID
    • ✅ Secret Access Key
    This is the only time you can view the Access Key ID and Secret Access Key so it is recommended to Download .csv file and save it securely in the password manager or organization vault for future reference
  • Click Done.

​
Option 2: IAM Role (Assume Role via STS)

​
Option 3: Multi-Account Integration using AWS StackSet Method

Connects AirMDR to every account in an AWS Organization through two IAM roles: one in the management account that enumerates the organization, and one in each member account that AirMDR reads from.Who runs this: an AWS administrator with IAM and CloudFormation StackSet permissions in the organization’s management account.Time: about 20 minutes, plus StackSet deployment time.

​

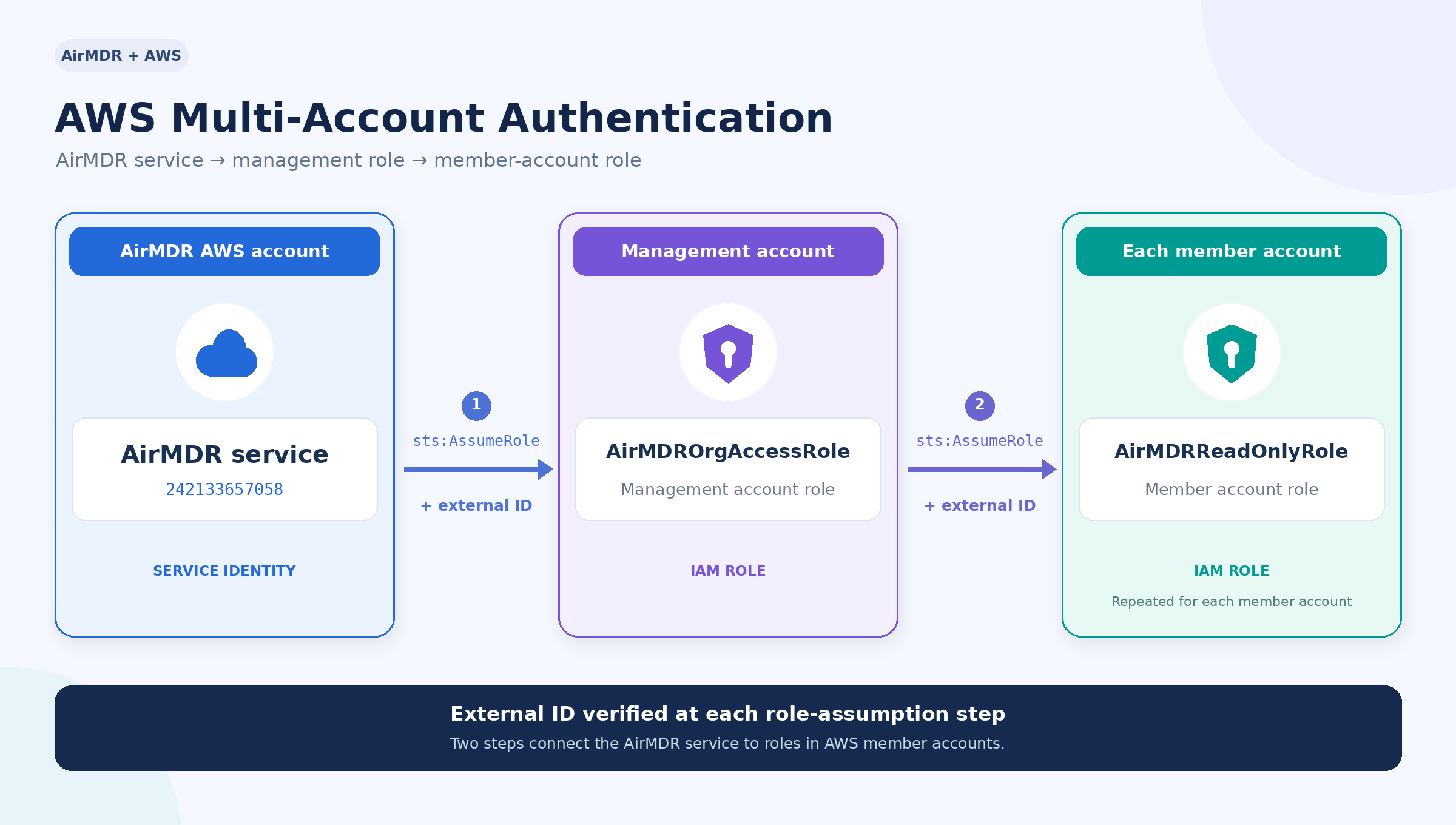

How the access chain works

Read this before you start — it is the part the previous version of this guide got wrong, and it determines what you put in each trust policy.Air MDR AWS Multi Account Authentication WorkflowTwo hops, not one. AirMDR assumes the management-account role, and then assumes the member-account role from that session. A member account therefore trusts its own organization’s management account, never AirMDR’s account directly.This matters for the member role’s trust policy. If you set it to trust 242133657058 — as the earlier template did — the second hop is denied, because the principal making that call is AirMDROrgAccessRole, not AirMDR’s account.
Already deployed the old template, where the member role trusts 242133657058 directly? It keeps working — AirMDR detects that topology and assumes accordingly. See Migrating an existing deployment for why you may still want to redeploy.

​
Step 1 — Create the management account role

Sign in to the management (root) account of your organization.
  1. Go to IAM → Roles → Create role.
  2. Trusted entity type: AWS account.
  3. Select Another AWS account and enter account ID 242133657058.
  4. Tick Require external ID and enter a unique string. Save it — this is your root_account_external_id.
  5. Attach the managed policy AWSOrganizationsReadOnlyAccess.
  6. Name the role AirMDROrgAccessRole and create it.
External ID format: 2–1,224 characters, alphanumeric, no whitespace. These symbols are also allowed: + = , . @ : / -. Use something unguessable, for example airmdr-orgaccess-2026-a7f3c9e21b8d4f60.

​
Step 1b — Add the two inline policies

AWSOrganizationsReadOnlyAccess alone is not enough. It grants only organizations:Describe* and organizations:List*, with no sts:AssumeRole, so the role cannot reach a single member account. It also grants no read access, so any skill that runs against the management account fails.Open the role → Add permissions → Create inline policy → JSON, and add both.Policy 1 — AirMDRAssumeMemberRoles. Lets the role make the second hop:
If you changed RoleName in Step 2, match it here.Policy 2 — AirMDRManagementAccountRead. The StackSet does not deploy into the management account, so that account is read through this role directly. Use the same JSON as the member permission set below.

​
Step 1c — Record three values

From the role’s summary page:root_account_id also tells AirMDR which account is the management account, so it can route reads there correctly instead of looking for a member role that does not exist.

​
Step 2 — Deploy the member role by StackSet

Still in the management account.
  1. CloudFormation → StackSets → Create StackSet.
  2. Permissions model: Service-managed permissions.
  3. Prerequisite: Template is ready. Specify template: Upload a template file.
  4. Upload the YAML below.
Before uploading, change ChildAccountExternalId’s default to your own unique string. This is a different secret from the one in Step 1 — do not reuse it. It becomes your cross_account_external_id.
  1. StackSet name: e.g. AirMDR-StackSet.
  2. Parameters: set ManagementAccountId to your own management account ID and ChildAccountExternalId to your chosen secret. Leave RoleName and OrgAccessRoleName at their defaults unless you renamed the Step 1 role.
  3. Configure options: Managed execution → Inactive. Tick the IAM capabilities acknowledgement.
  4. Deployment options:
    • Add stacks to stack set → Deploy new stacks
    • Deployment targets → Deploy to organization
    • Automatic deployment → Activated (new accounts are covered automatically)
    • Account removal behaviour → Delete stacks
    • Specify regions → the region your security data is in. This becomes region_name. IAM roles are global, but the region you pick here is where AirMDR will query.
    • Region concurrency → Sequential; Concurrency mode → Strict failure tolerance
  5. Review → Submit, then wait for every stack instance to reach CURRENT.
Write actions. This policy is read-only. Skills that change state in your account — archiving GuardDuty findings, updating Security Hub workflow status, writing or deleting S3 objects, revoking IAM role sessions — need guardduty:ArchiveFindings, securityhub:BatchUpdateFindings, s3:PutObject, s3:DeleteObject, iam:PutRolePolicy and iam:GetRole. Add them as a second, clearly-labelled statement only if you want AirMDR to take those actions.

​
The permission set

The actions above are the complete set AirMDR calls. Use the same list for the management account’s inline policy in Step 1b — minus the sts:AssumeRole that is already in AirMDRAssumeMemberRoles.

​
Step 3 — Create the connection in AirMDR

Integrations → Amazon Web Services → Add connection → Multi-account.Leave assume_role_in_root_account unset. AirMDR works out which trust topology your member roles use on the first assume and reuses that answer for the rest of the query. Pin it only if you want to skip that one-off detection — true for the template in this guide, false for the older one. A pinned value is obeyed exactly, so an incorrect pin produces AccessDenied rather than silently falling back.

​
Step 4 — Verify

Run Verify authentication. A green result confirms AirMDROrgAccessRole is assumable — and nothing more. It only calls sts:GetCallerIdentity, which needs no permission at all, so it cannot tell you whether the member roles work.Prove the second hop with a real query. Run Get GuardDuty findings with no account_id, then read AccountResults[] in the response:
  • Every account status: "success" — setup is complete.
  • AccessDenied on sts:AssumeRole for every member — the trust policy, the external ID, or the sts:AssumeRole grant from Step 1b is wrong.
  • AccessDenied on a guardduty: action — the chain works; that account is missing a permission, or GuardDuty is not enabled in that region.
  • An entry for the management account only — the StackSet has not finished.
An empty Findings list on its own does not mean “no findings”. Always read AccountResults[].

​
Account coverage

Not every skill reaches every account, so set expectations accordingly.Query all member accounts automatically, and accept an optional account_id input to target one: Get GuardDuty findings, Look up CloudTrail events, Filter CloudWatch log events, Get CloudWatch metrics, General AWS query.Run against the management account only: everything else — listing GuardDuty detectors, listing CloudTrail trails, CloudWatch log groups and events, all S3 skills, all Security Hub skills, Athena queries, and the IAM skills. These need the Step 1b inline read policy on AirMDROrgAccessRole; without it they return AccessDenied. Broader fan-out for these is on the roadmap.

​
Migrating an existing deployment

Earlier versions of this guide shipped a template whose member role trusted arn:aws:iam::242133657058:root — AirMDR’s account — rather than your management account role.Nothing breaks and there is nothing to change. AirMDR detects which principal your member roles trust and assumes accordingly. An existing deployment keeps working untouched, on the original template, with no connection edit and no redeployment.You would still want to move to the template above for its permission scope, not its trust policy: the older AirMDRReadOnlyPolicy granted only CloudTrail and GuardDuty reads, so CloudWatch, Security Hub, S3 and Athena skills return AccessDenied until it is widened. When you do redeploy, the trust policy changes with it and AirMDR follows automatically.Two notes for the old topology:
  • AirMDROrgAccessRole does not need the sts:AssumeRole policy from Step 1b, because nothing chains through it. Add the Step 1b read policy only if you want management-account data.
  • Detection costs one denied sts:AssumeRole per client, which appears in your CloudTrail. If that noise matters to your own detections, pin assume_role_in_root_account to false and it stops.

​
Troubleshooting

Either accesskey and secretkey or role_arn or ... is required — the connection is missing root_account_role_arn, or it was saved before the fix that added root-account support. Re-save the connection.sts:AssumeRole denied on every member account — AirMDR tries both trust topologies before reporting this, so the role is genuinely unreachable. Check, in order: cross_account_external_id matches ChildAccountExternalId exactly; the StackSet reached CURRENT in that account; the sts:AssumeRole grant from Step 1b exists on AirMDROrgAccessRole; the member trust policy names either your management account role or 242133657058. If assume_role_in_root_account is pinned, detection is off — clear it, or confirm the pin matches your template. The error text tells the first apart from the rest: because no identity-based policy allows the sts:AssumeRole action means the Step 1b grant is missing.A skill returns zero rows with no error — read AccountResults[] before concluding the data is not there. A fan-out where every account failed still returns an empty top-level list.NoSuchBucket from an S3 skill — bucket names are not discoverable; AirMDR has no s3:ListAllMyBuckets. Supply the exact bucket name, and make sure it is in the Resource list of the S3 statement.Only one region is queried — region is fixed per connection. Add a second connection, with the StackSet extended to that region, to cover another one.

​
Where to find the generated AWS Authentication Parameters in the Console (UI Steps)

​
Skills Provided by this Integration

The AWS integration provides skills to investigate security findings, query logs and metrics, access S3 objects, analyze historical data, and automate response actions.

Permissions depend on the skills used and the resources accessed. Grant the required IAM actions to the IAM user or role configured for the AirMDR connection.
CloudTrail LookupEvents retrieves management and supported Insights events within the last 90 days in a region. It does not retrieve data events. Query older events or data events from a configured logging destination, such as CloudTrail logs stored in S3 through Athena.
Grant logs:Unmask only when access to unmasked sensitive fields is required. Add logs:DescribeLogStreams if the implementation or playbook also discovers log streams before retrieving events.
Add guardduty:GetDetector when the integration retrieves detector configuration or performs detector-detail checks.
Both the GetFindings and GetFindingsV2 APIs require securityhub:GetFindings. Do not add securityhub:GetFindingsV2 as an IAM action.
For Put S3 Object, the following permissions are conditional:These permissions depend on the options included in the upload request.
For standard queries against Glue catalog tables backed by S3, configure the following additional access:
Athena permissions alone do not provide access to the underlying data. Retrieving query results also requires S3 access to the result location. Even a SELECT query writes query results.
Role session revocation does not deactivate IAM user access keys. This method cannot edit IAM Identity Center permission-set roles or revoke service-linked role sessions. Restrict iam:PutRolePolicy to the intended target roles because it permits inline policy changes.
Permission simulation is a diagnostic check. It does not guarantee that a live AWS request will succeed under every applicable policy and resource configuration.
A single EC2 read-only policy cannot cover every supported use of General AWS Query. Document the actions required by the methods used in customer playbooks.
To view the details of Input Parameters and Output for the respective skills
  • Go to AirMDR → AWS Integration page.
  • Select the Skills tab and click on the required listed skills.

​
Permissions Required

Configure AWS access according to the skills your organization uses. Investigation skills require read or query permissions. Response skills require additional permissions to update findings, manage S3 objects, or revoke IAM role sessions.

​
AWS IAM Permissions

AirMDR requires specific AWS IAM actions according to the skills and workflows your organization uses. Grant these actions to the IAM user or role configured for the AirMDR connection.
Use separate policies for investigation, Athena queries, and response actions so that each connection receives only the access required for its workflows.
The tables below identify the permissions for each skill. Additional permissions may be required for encryption, cross-account execution, data catalog access, or resource discovery. AWS managed policies can provide broader access than a workflow requires; use the specific actions below when defining a custom policy.
Use securityhub:GetFindings for both Security Hub finding retrieval skills. Do not use securityhub:GetFindingsV2 or securityhub:ListFindings in the IAM policy.
Grant these permissions only when the corresponding response workflows are used.
Add the following permissions only when the associated feature or operation is used.
For standard Athena queries against Glue catalog tables backed by S3, configure the following access in addition to the three Athena actions listed above.
Athena queries require access to the underlying data and query-result location. Even a SELECT query writes results. Other SQL operations, federated queries, and different catalog configurations can require additional permissions.

​
Configure AWS in the AirMDR Integrations Dashboard

  1. Navigate to AirMDR, provide the credentials, and click Login.
  2. Navigate to the AirMDR Integrations Dashboard in the left navigation pane and select Integrations.
  3. Use the search option, enter the keyword “Amazon Web Services”, select the Connections tab, and click the + Create icon.
  4. Enter an unique name to the Instance (e.g., your org name-AWS) to easily identify the user connection by AirMDR.
  5. AirMDR supports multiple authentication methods for integrating with your AWS environment:
    • IAM User (Access Key Method)
      1. In the Authentication Details → DO IT YOURSELF
      2. Go to Step. 2 and provide the values: Required Fields in the Authentication Details field params:
        • access_key: Access Key ID of the IAM user
        • secret_key: Secret Access Key associated with the IAM user
          This key is generated when creating the Access Key for the user.
      3. In the Step. 5 enter the region name.
        • region_name: AWS region to be used for integration (e.g., us-east-1)
      4. Click the “Create” button to save the integration configuration.
      5. Click the “Authenticate” button to validate the credentials and authorize the connection.
    • IAM Role (Assume Role Method)
      1. In the Authentication Details → DO IT YOURSELF
      2. In the Step. 3 provide the values: Required Fields in the Authentication Details field params:
        • role_arn: ARN of the IAM role to assume
        • external_id: External ID configured in the IAM role’s trust policy
      3. In the Step. 5 enter the region name.
        • region_name: AWS region to be used for integration (e.g., us-east-1)
      4. Click the “Create” button to save the integration configuration.
      5. Click the “Authenticate” button to validate the credentials and authorize the connection.
    • Multi-Account Integration using AWS Stackset Method
      1. In the Authentication Details → DO IT YOURSELF
      2. In the Step. 4 provide the values: Required Fields in the Authentication Details field params:
        • root_account_role_arn: ARN of the IAM role in the root account used to list accounts
        • root_account_external_id: External ID in the root account role’s trust policy
        • root_account_id: Account ID of the root/management account
        • cross_account_role_name: Name of the IAM role created in all member accounts
        • cross_account_external_id: External ID configured in member accounts’ trust policies
      3. In the Step. 5 enter the region name.
        • region_name: AWS region to be used for integration (e.g., us-east-1)
      4. Click the “Create” button to save the integration configuration.
      5. Click the “Authenticate” button to validate the credentials and authorize the connection.
